4K 2K HDMI Splitter 1 to 8

The 1×8 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to eight HDMI compatible monitors or projectors. In addition，it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840X2160/30HZ.

FEATURES

l  Support HDMI1.4b version

l  Support 3D video format

l  Support high resolution up to3840X2160/30HZ

l  Support highest rate of 3.2 G and TMDS clock can be up to 320 MHz

l  Support 8/10/12 bit deep color

l  Support AWG26 HDMI standard cable:

    when the resolution is 1080p and below, input up to 15 meters,output up to 25 meters.

    when the resolution is 4K, input up to 12 meters, output up to 15 meters.

l  Support one single HDMI source, accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and ect.

12V/2A power adapter

Specifications:

HDMI version  …………………………………………………………………….. HDMI 1.4b

HDMI resolution ……………………………….. ……….. ……….. …up to 3840*2160/30Hz

Support video format ………………………………..…………………..8/10/12bit deep color

Support audio format………………..………. ….DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD

Max bandwidth…………………………………………………………………………….320MHz

Max baud rate……………….…….………………….…………………………………..3.2Gbps

Input cable distance.…………………………….(1080p resolution) ≤15m,(4K resolution)≤12m AWG26 HDMI standard cable

Output cable distance…………………………(1080p resolution) ≤25m,(4K resolution)≤15m AWG26 HDMI standard cable

Max working current…………………………………………………………………………..1.58 A

Power adapter format………………….input AC (50HZ, 60HZ) 100V-240V; output: DC12V/2A

Operating Temperature range…………………………..…………….………………(-15 to +55℃)

Dimension (L x W x H)…………………………………………………………….276x136x24 (mm)

Weight…….…..………………………………………………………..…….……………………660g

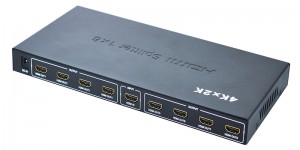

Product photos

Product interface pictures
