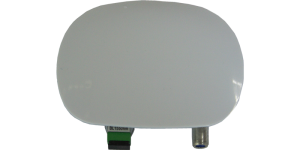

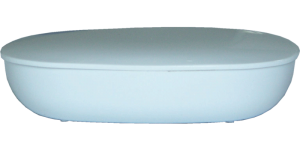

GGE-10HA CATV FTTH Optical Gnìomhach Node
Goirid Tuairisgeul:
GGE-10HA AGC Dheanainn Sugradh Optical sgaoileadh snàithleach-trusaidh
Coileanaidh Characteristics
1.Designed airson FTTH (Fiber To The Dachaigh Network)
2.High responsivity WF (Filter) Pin diode
3.RF-steach nas ìsle ri -20dBm
4.Excelent linearity / neo-linearity, àrd toradh ìre
5.Imported MMIC airson toradh àrd-ìre agus inbhe obrach seasmhach
6.Optical ceanglaiche: SC / APC
7.RF-cheangalan: F female-/ F male
8.Equipped le RF dhìonadh Dìon
9.12V 0.5A cumhachd adapter
Sònrachadh teicnigeach
|
Chrìochan |
Aonad |
GGE-10HA |
|
Bandwidth |
Mhz |
47 ~ 862 |
|
Optical Obrach wavelength |
NM |
1550nm |
|
Opticl Input Raon Power |
dBm |
(0 ~ -20) |
|
Raon na AGC |
DB |
(-8 ~ -20) |
|
RF Ìre toraidh |
dBuV |
70 |
|
Optical Cnuasachaidh Loss |
DB |
≥45 |
|
Co-ionann ri Noise Figear |
|
≤8 |
|
In-Band Flatness |
DB |
± 75 |
|
Reflection Loss |
DB |
≥16 |
|
RF Species Impendance |
Ω |
75 |
|
CNR |
DB |
51 |
|
CTB |
DB |
≥65 |
|
CSO |
DB |
≥60 |
|
Test Cor |
|
3,80% OMI, -1dBm Optical Power èisteachd |
|
DC Input Raon na bholtaids |
VDC |
12 |
|
Ag obair Teòthachd |
℃ |
(-40 ~ +60) |
|
cumhachd Loss |
W |
<25 |
|
Tomhas (FTTH) |
mm |
110 (L) * 28 (H) * 75 (W) |
|
Package |
pc / ctn |
20 |
|
GW |
kG |
4,35 |
