Super Lowest Price Dish Tv Lnb Lnb - 4K 2K HDMI Matrix 4 inputs 2 outputs – GreenGo
Short Description:
Super Lowest Price Dish Tv Lnb Lnb - 4K 2K HDMI Matrix 4 inputs 2 outputs – GreenGo Detail:
The HDMI matrix 4×2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors. And any output port can realize independent audio output by optical fiber or stereo head phone.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features :
l Support HDMI 1.4b
l Support 3D video format
l Support highest resolution up to 4096*2160/30Hz
l Support 6.75G data rate and tmds clock up to 675Mhz
l Support deep color 8/10/12 bit
l When the resolution is 1080p and below, Support AWG26 HDMI standard cable input up to 15 metres length, output up to 25 metres length.
When the resolution is 4K,Support AWG26 HDMI standard cable input up to 12 metres length, output up to 15 metres length.
l Support 3.5 mm audio output and optical output
l Support four HDMI input to be switched or split two HDMI output.
Support 5.1 audio channel
Support single high definition display and multiple output HD signal sources, such as DVD Players,A/V receivers and Set Top Boxes.
l Need DC5V/3A power supply
SPECIFICATIONS:
HDMI version…………………………………………………………….…….…….….…….HDMI 1.4b
HDMI resolution …………………….…….….…….….…….….…….….…….up to 4096*2160/30Hz
Support video format ………………………………….…………………….…….8/10/12 bit deep color
Support audio format……………………….….…….DTS-HD/Dolby-trueHD//DTS/Dolby-AC3/DSD
Max bandwidth…………………………………………………..….…………..….…….….…675MHz
Max baud rate…………….…….………………….………….……………….…….….…… 6.75Gbps
Input cable distance..…… ………………………..…………(1080p resolution) ≤15m,(4K resolution)≤12m AWG26 HDMI standard cable
Output cable distance……………………………………..(1080p resolution) ≤25m,(4K resolution)≤15m AWG26 HDMI standard cable
HDMI Input…….……………………………………………….…………………..……….…….….…….4
HDMI Output……………………………………………………………………………..….…….….…..2
Max working current……………………………………………..…..………………..…….….1600mA
Power adapter format…………………………Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/3A
Operating Temperature range……..…………….…………..………………………..…(-15 to +55℃)
Operating Humidity range…………………………………..….…….5 to 90%RH (No Condensation)
Dimension (L x W x H)……………………………….……….………………………..200x70x25 (mm)
Weight…..…………………………………………………..…………….…………….…….….…….320g
Product picture:
Physical Connection Showing Picture:

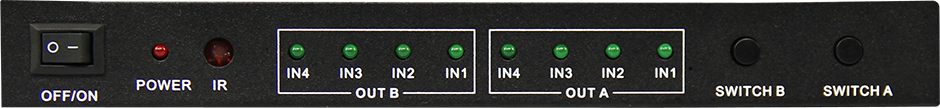

Product detail pictures:
