IP to DVB-T/C qam Modulator
Short Description:
Product Overview
NX03XR series products are our company’s latest research and development of a digital TV front-end audio and video processing cost-effective equipment, can achieve IP, ASI input to modulation output . supports 2 Gigabit inputs and 1 Gigabit output, supports multiple protocol inputs (RTMP/HTTP/RTSP/HLS/SRT/UDP/RTP) , supports 6 ASI inputs.The device can select 8/12/16/24 carrier output according to customer needs.The device has excellent performance and flexible configuration, using 1U chassis, compact structure, easy to install and use. A single device integrates a whole set of front-end system functions, which is very suitable for a variety of new generation digital TV broadcasting systems.
System function diagram
Product features
l Provides 3 gigabit port input/output
l Supports RTMP/HTTP/RTSP/HLS/SRT/RDP/RTP input(DATA1) , UDP/RTP input(DATA3)
l Supports 6 ASI inputs
l Supports 8/12/16/24 carrier output (DVB-T/- C/DTMBT/ATSC/ISDBT optional)
l Supports 8 MPTS output (DATA2,UDP/RTP)
l Integrated multiplexing and modulating functions
l Using 1U chassis, a single device integrates a set of front-end device functions, saving installation and wiring space
l Supports network management (Web)
l Support online upgrades
Streaming media output
| Version：4.19.232-33.31-0.1-20240701
Date：202407 Mode：Received stream |
||||||
|
Protocol |
Input Format |
Video |
Audio |
TS bitrate |
Channels |
Total output bitrate |
|
RTMP |
H264+AAC(LC) |
V:6Mbps |
A:128Kbps |
TS:6.5Mbps |
CH:64 |
BITRATE:420M |
|
HTTP |
H264+AAC(LC) |
V:6Mbps |
A:128Kbps |
TS:6.5Mbps |
CH:64 |
BITRATE:420M |
|
HLS |
H264+AAC(LC) |
V:6Mbps |
A:128Kbps |
TS:6.5Mbps |
CH:64 |
BITRATE:420M |
|
RTSP |
H264+AAC(LC) |
V:6Mbps |
A:128Kbps |
TS:6.5Mbps |
CH:60 |
BITRATE:390M |
|
SRT |
H264+AAC(LC) |
V:6Mbps |
A:128Kbps |
TS:6.5Mbps |
CH:42 |
BITRATE:270M |
|
Note |
This test is the test result of the device in a relatively ideal network environment. When designing the front-end system, it is necessary to consider the influence of the actual working environment, such as the network environment and other devices in the network. |
|||||
Product model selection
|
Product model |
Device ports |
Input |
Output |
|
NX0308R |
3 Gigabit port；
1 NMS port； 6 ASI port； 1 RF out |
2 Gigabit input (DATA1: RTMP/HTTP/RTSP/HLS/SRT input; DATA3: UDP/RTP input) 6 ASI input |
8 carrier output(or 16 DVB-C); （Total output bandwidth:192MHz） 1 Gigabit output(DATA2: 8 MPTS) |
|
NX0312R |
3 Gigabit port；
1 NMS port； 6 ASI port； 1 RF out |
2 Gigabit input (DATA1: RTMP/HTTP/RTSP/HLS/SRT input; DATA3: UDP/RTP input) 6 ASI input |
12 carrier output(or 16 DVB-C); （Total output bandwidth:192MHz） 1 Gigabit output(DATA2: 8 MPTS) |
|
NX0316R |
3 Gigabit port；
1 NMS port； 6 ASI port； 1 RF out |
2 Gigabit input (DATA1: RTMP/HTTP/RTSP/HLS/SRT input; DATA3: UDP/RTP input) 6 ASI input |
16 carrier output(or 32 DVB-C); （Total output bandwidth:768MHz） 1 Gigabit output(DATA2: 8 MPTS) |
|
NX0324R |
3 Gigabit port；
1 NMS port； 6 ASI port； 1 RF out |
2 Gigabit input (DATA1: RTMP/HTTP/RTSP/HLS/SRT input; DATA3: UDP/RTP input) 6 ASI input |
24 carrier output(or 32 DVB-C); （Total output bandwidth:768MHz） 1 Gigabit output(DATA2: 8 MPTS) |

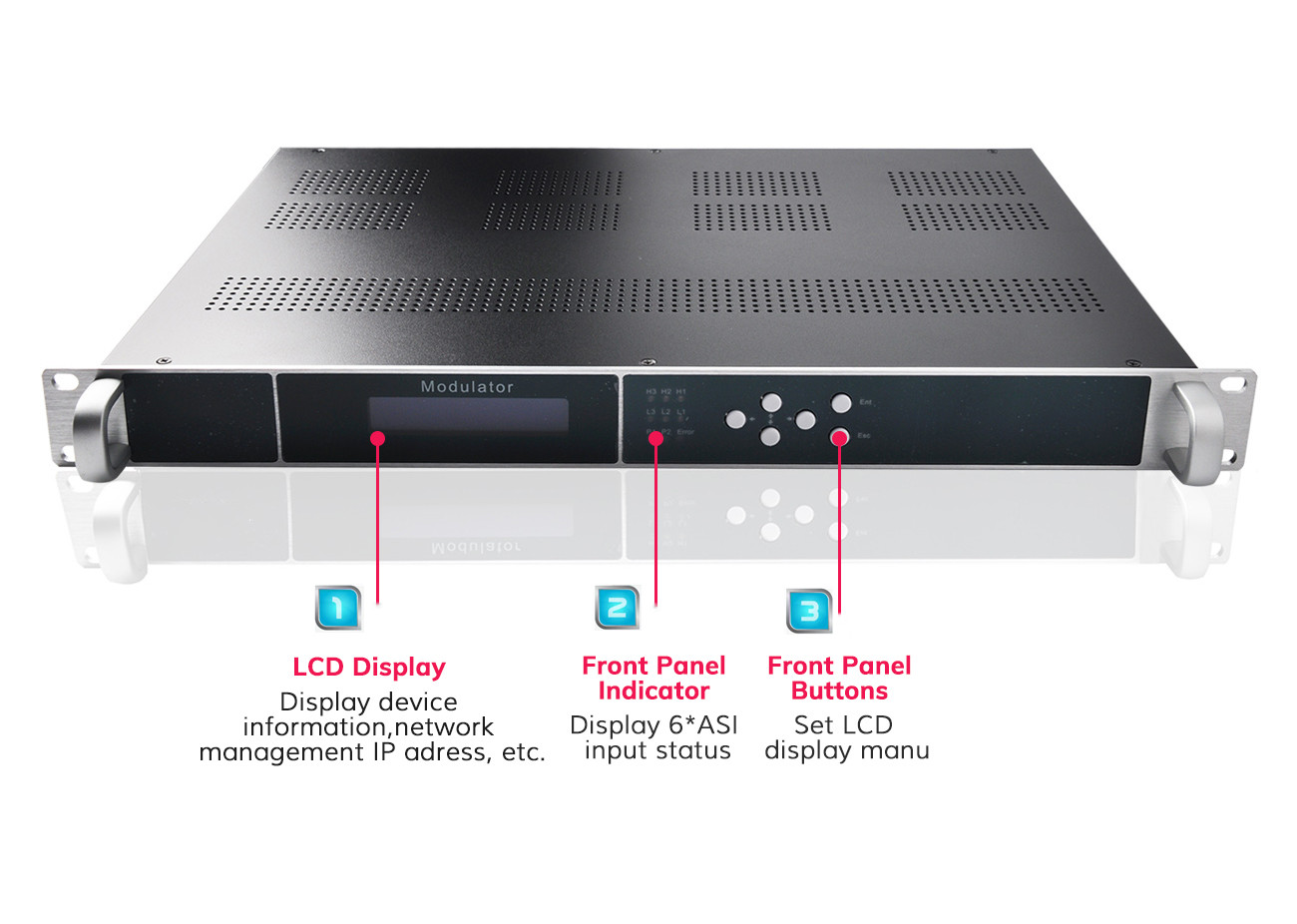

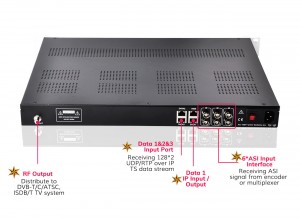

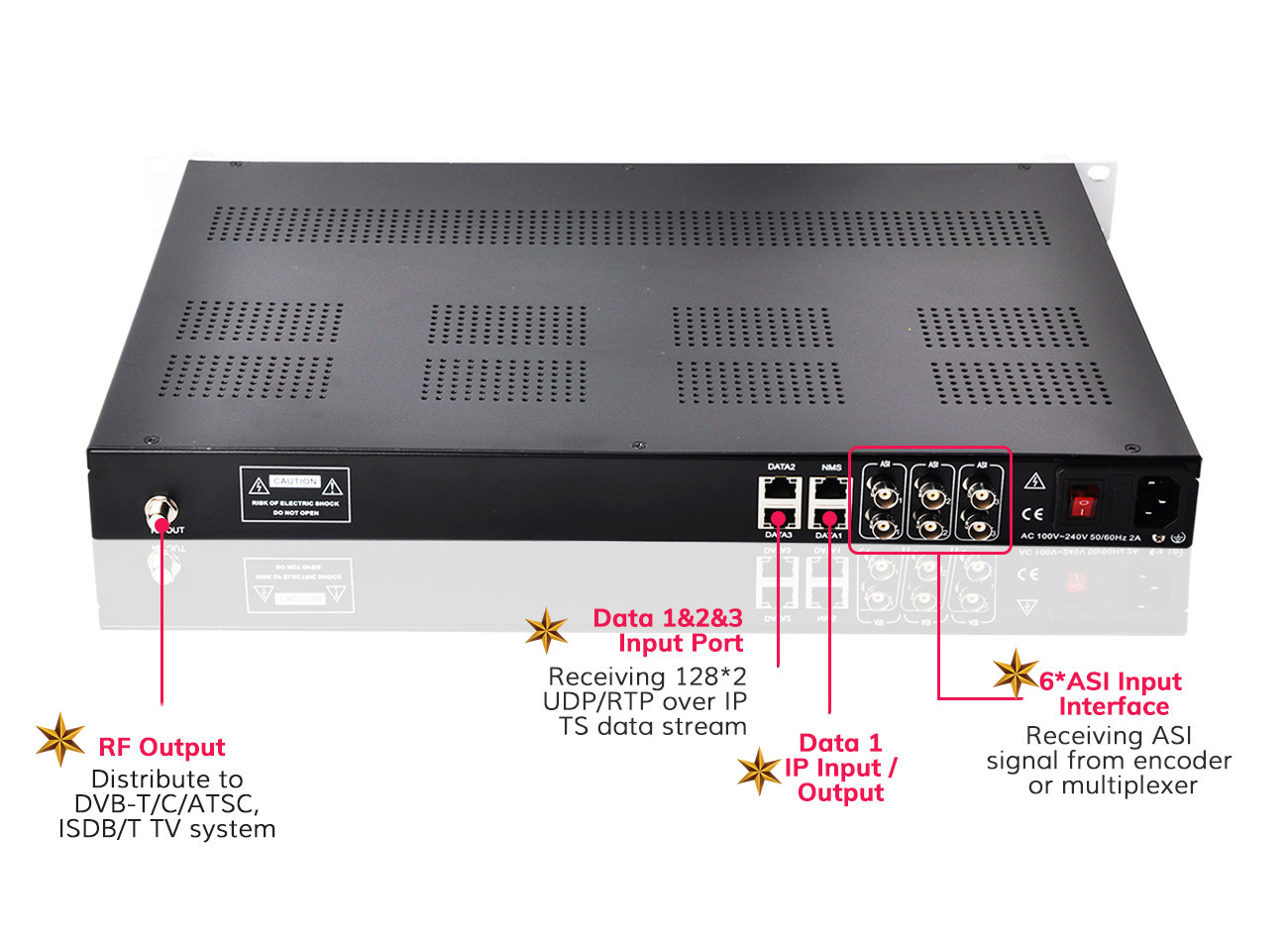

Product structure
|
Number |
Interface Overview |
|
1 |
LCD |
|
2 |
Keys and indicator lights |
|
3 |
RF out |
|
4 |
NMS: NetworkManagementSystem |
| DATA1: IP input ,RTMP/HTTP/RTSP/HLS/SRT protocol
DATA2: IP output, 8 MPTS over UDP/RTP protocol DATA3: IP input ,UDP/RTP protocol |
|
|
5 |
ASI IN: Serial TS Input (Any Multiplex) |
|
6 |
Power Switch |
